SSC-600 MKII

SSC-600 MKII

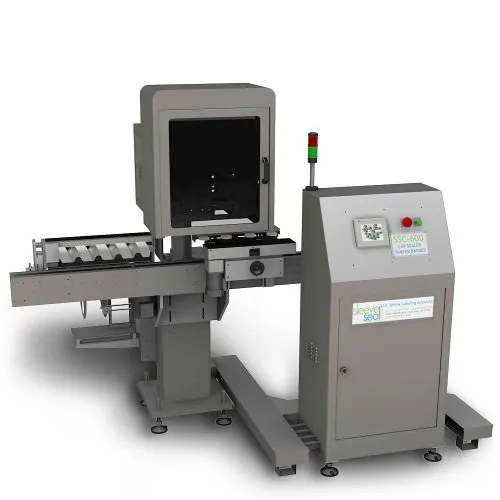

The SSC-600 cap sealer / tamper evident bander is a hardworking applicator that never complains. Even in harsh conditions, the drive train applies neckbands all day with speed and precision. Don’t let the small footprint fool you, this is a very capable machine.

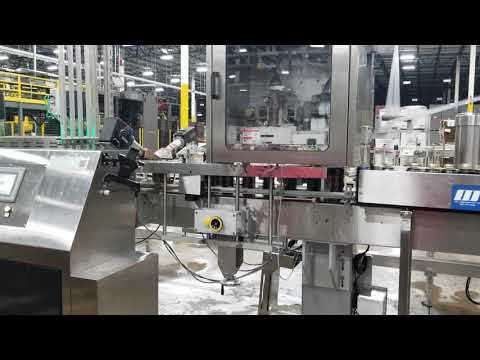

Watch the SSC-600 In Action

SSC-600 MKII
Access Cabinet

Every Sleeve Seal machine is housed in a heavy gauge stainless steel cabinet and includes lockable service doors for ease of maintenance and safety. Access to the front of the cabinet is managed with Allen Bradley safety interlock switches to ensure safety. Operators are able to manage operation and changeovers using a customized HMI and synchronized adjusters.

Cutter Box

Our patented cutter box design utilizes four to eight synchronized cutting blade heads for fast, precise cuts that won’t leave jagged film ends. Sleeve Seal cutter boxes use common, affordable utility blades that can be found in a local hardware store with other blade types available for use in harsh environments. Sleeve Seal’s modular design allows for easy replacement of blades and fast changeovers between formats.

Product Specifications
SSC-600 Production Rate: 600 BPM
Bottle Sizes: 25 – 50 mm diameter
Label Length: 25 – 50 mm
Label Thickness: 40 – 80 micron (µm)
Materials: PVC, PET, OPS
