Precise and Clean Label Application
Our range of PSL label stations apply labels with a positional precision of +/-1mm on all container surfaces without creases or bubbling.
Complex Applications
We specialize in complex applications such as elite champagne brands, internationally known spirits, and luxury body care products.
Flexibility
Servo driven container platforms supported by optical orientations give our labelers precision and flexibility in managing current and future application. Additional processes such as marking, coding and a multitude of quality inspections systems ensure that all requirements will be met.
Speed
Label web application speeds of up to 150 meters per minute are available with production speeds of up to 50,000 containers per hour on appropriate containers.
Non-Stop Production
Our PSL labelers can run continuously around the clock and throughout weeks and months of maximum capacity due the application of Master Slave station pairs, or through-web splicing systems.
Cost of Ownership
The use of servos and sealed gearboxes on all driven axes eliminates the cost and maintenance headaches of traditional mechanical labellers. Planned maintenance is limited to basic cleaning and checks, with annual inspection of minor systems, such as electrical cabinet fan filters, lubrication cartridges and conveyor wear parts.
Fast Changeovers
Label stations are available with automated multi axis positional systems. Quick release container platforms can be provided to reduce format change time and effort.
HMI Controls
Clear and simple screens are provided with sophisticated images and data displays. Embedded HMI PC allows control of the vision system and other electronic devices with the labeller. Access to all system documents, tutorials and production data can be achieved.
Ergonomics
Our Modular machine configuration allows easy access to the label stations, container handling system, and supporting system such as cameras and coders.

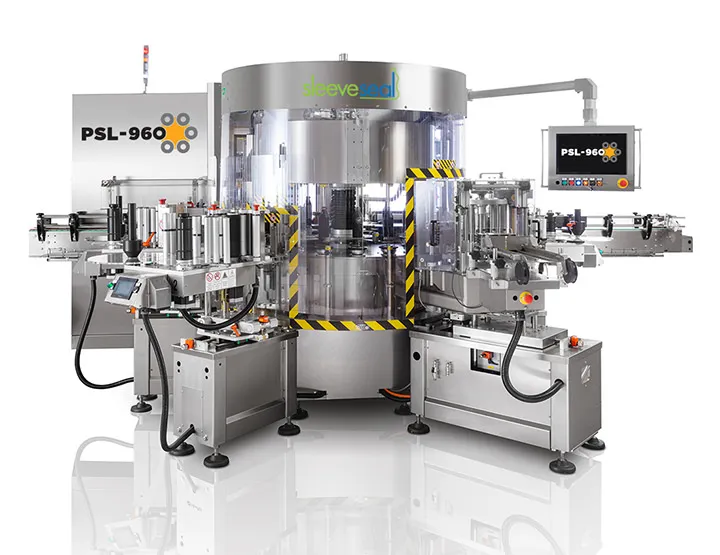

Combination Labelers
Other labeling systems such as Roll Fed; Hot Melt and Cold Glue can be applied alongside the PSL stations. Carrousel diameters up to 2400mm diameter are available, for accommodation of up to 6 Master Slave applications, or various label system combinations.
